BMW X5 – xDrive 40 d Mild-Hybrid diesel
G05 · 250 kW / 340 hp
2018 - now · Diesel hybrid
34 parts matched to this engine · 9 departments
Not your engine? Choose another
Save this car and every part on the site shows whether it fits.
Departments for this car
A few parts matched to this engine
All Departments →

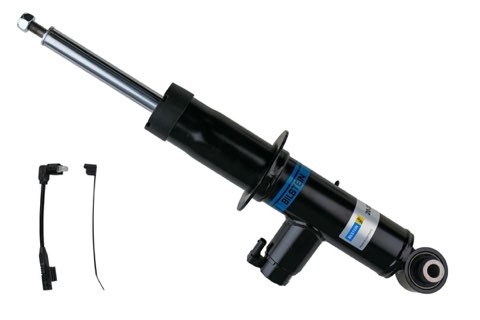

BilsteinShock Absorber, 20-328955, Rear left
TZS 3,170,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
BoschMass Air Flow Sensor, 0 281 006 812
TZS 599,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Febi BilsteinDrive Belt Tensioner, 176489
TZS 481,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
MahleSender Unit, Interior Temperature, ASE 27 000P
TZS 68,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
RidexWiper Blade — 500mm, 298W0118, Front
TZS 34,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
BremboBrake Caliper Guide Sleeve, F SV 026
TZS 71,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in

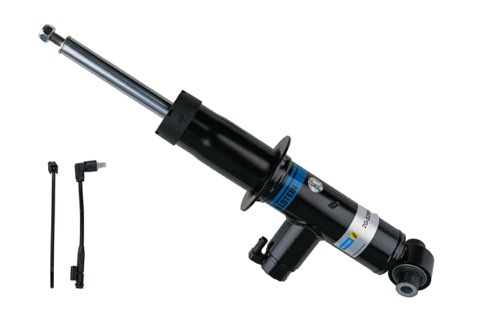

BilsteinShock Absorber, 20-328962, Rear right
TZS 3,170,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Car Details
Details may vary by version.
Engine
- Fuel
- Diesel hybrid
- Made
- From 2018
- Engine code
- B57D30B
- Power type
- Mild hybrid (small electric helper)
- Engine size
- 2,993 cc (3 litres)
- Engine power
- 340 hp (250 kW) at 4,400 rpm
- Total power
- 340 hp (250 kW)
- Torque (pulling power)
- 700 Nm at 1,750 to 2,250 rpm
- Cylinders
- 6, in a row (inline)
- Turbo
- Turbo
- Fuel injection
- Common-rail diesel injection
Show 6 MoreShow Less
- Valves
- 24 (4 per cylinder)
- Bore x stroke
- 84 x 90 mm
- Compression ratio
- 16.5:1
- Engine position
- Front, lengthways (longitudinal)
- Electric motor power
- 11 hp (8 kW)
- Catalytic converter
- Diesel oxidation catalyst
Fluids and capacities
- Engine oil amount
- 6.5 litres
- Engine oil grade
- 0W-30, 0W-40, 5W-30 or 5W-40
- Fuel tank
- 80 litres
Gearbox and drive
- Gearbox
- 8-speed automatic
- Driven wheels
- 4x4 (all four wheels)
Wheels, brakes, suspension and steering
- Tyre size
- 255/55 R18
- Wheel (rim) size
- 8.5J x 18
- Front brakes
- Ventilated discs
- Rear brakes
- Ventilated discs
- Steering
- Rack and pinion, electric power steering
Show 2 MoreShow Less
- Front suspension
- Double wishbone
- Rear suspension
- Independent multi-link suspension
Size and weight
- Body style
- SUV
- Seats
- 5
- Doors
- 5
- Length
- 4,922 mm
- Width
- 2,004 mm
- Height
- 1,745 mm
- Weight (empty)
- 2,200 kg
- Ground clearance
- 214 mm
- Boot space
- 650 litres
Show 13 MoreShow Less
- Boot space, rear seats folded
- 1,870 litres
- Wheelbase
- 2,975 mm
- Width with mirrors
- 2,218 mm
- Front track
- 1,666 mm
- Rear track
- 1,685 mm
- Turning circle
- 12.6 metres
- Maximum weight (loaded)
- 2,940 kg
- Load it can carry
- 740 kg
- Roof load
- 100 kg
- Approach angle
- 25.2 degrees
- Departure angle
- 22.3 degrees
- Ramp (breakover) angle
- 20.2 degrees
- Wading depth
- 500 mm
Speed and fuel use
- Fuel use, mixed driving
- 5.9 to 6.4 l/100 km (about 15.6 to 16.9 km per litre)
- Fuel use in town
- 7.2 to 7.8 l/100 km (about 12.8 to 13.9 km per litre)
- Fuel use on the highway
- 5.1 to 5.6 l/100 km (about 17.9 to 19.6 km per litre)
- Top speed
- 245 km/h
- 0 to 100 km/h
- 5.5 seconds
Show 2 MoreShow Less
- CO2 emissions
- 154 to 167 g/km
- Emission standard
- Euro 6
Fuel use is from official tests; town driving usually uses more.
More
- Towing, trailer with brakes
- 3,500 kg
- Towing, trailer without brakes
- 750 kg
- Weight on the tow bar
- 140 kg
- Air drag (Cd)
- 0.31
- Engine systems
- Start-stop (engine switches off at lights), Particulate filter (DPF/GPF)
