Ford Mondeo Mk4 Estate – 1.8 TDCi diesel
BA7 · 92 kW / 125 hp
2007 - 2012 · Diesel
130 parts matched to this engine · 11 departments
Not your engine? Choose another
Save this car and every part on the site shows whether it fits.
Departments for this car
A few parts matched to this engine
All Departments →
TRWSteering Rack Gaiter, JBE351, Front
TZS 33,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Febi BilsteinAlternator Clutch Pulley, 29835
TZS 153,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in

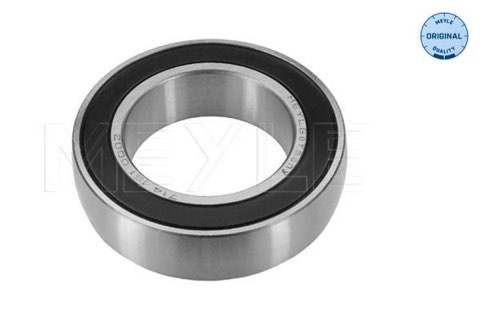

MeyleIntermediate Shaft Bearing, 714 151 0002, Front
TZS 122,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
TRWTwin Shock Absorber, JGE295T, Rear
TZS 139,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Car details
Details may vary by version.
Engine
- Fuel
- Diesel
- Made
- 2007 - 2012
- Engine code
- KHBA, QYBA
- Engine size
- 1,753 cc (1.8 litres)
- Engine power
- 125 hp (92 kW) at 3,700 rpm
- Torque (pulling power)
- 340 Nm at 1,800 rpm
- Cylinders
- 4, in a row (inline)
- Turbo
- Turbo
- Fuel injection
- Common-rail diesel injection
Show 5 moreShow less
- Valves
- 8 (2 per cylinder)
- Valve system
- SOHC
- Bore x stroke
- 82.5 x 82 mm
- Compression ratio
- 18.5:1
- Engine position
- Front, sideways (transverse)
Fluids and capacities
- Engine oil amount
- 5.6 litres
- Engine oil grade
- 5W-30
- Coolant
- 7.9 litres
- Fuel tank
- 70 litres
Gearbox and drive
- Gearbox
- 5-speed manual or 6-speed manual
- Driven wheels
- Front-wheel drive
Wheels, brakes, suspension and steering
- Tyre size
- 205/55 R16, 215/55 R16 or 235/45 R17
- Wheel (rim) size
- 6.5J x 16 or 7.5J x 17
- Front brakes
- Ventilated discs
- Rear brakes
- Discs
- Steering
- Rack and pinion, hydraulic power steering
Show 2 moreShow less
- Front suspension
- Independent, McPherson type with coil spring and anti-roll bar
- Rear suspension
- Independent multi-link spring suspension with anti-roll bar
Size and weight
- Body style
- Estate (station wagon)
- Seats
- 5
- Doors
- 5
- Length
- 4,830 mm
- Width
- 1,886 mm
- Height
- 1,512 mm
- Weight (empty)
- 1,449 to 1,504 kg
- Boot space
- 494 litres
Show 9 moreShow less
- Boot space, rear seats folded
- 1,745 litres
- Wheelbase
- 2,850 mm
- Width with mirrors
- 2,078 mm
- Front track
- 1,579 to 1,589 mm
- Rear track
- 1,595 to 1,605 mm
- Turning circle
- 11.8 metres
- Maximum weight (loaded)
- 2,255 to 2,265 kg
- Load it can carry
- 761 to 806 kg
- Roof load
- 75 kg
Speed and fuel use
- Fuel use, mixed driving
- 5.9 l/100 km (about 16.9 km per litre)
- Fuel use in town
- 7.6 l/100 km (about 13.2 km per litre)
- Fuel use on the highway
- 4.9 l/100 km (about 20.4 km per litre)
- Top speed
- 195 km/h
Show 2 moreShow less
- CO2 emissions
- 156 g/km
- Emission standard
- Euro 4
Fuel use is from official tests; town driving usually uses more.
