Bosch
Brake Master Cylinder, 0 204 864 D6K
TZS 151,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Ford Puma Off-Road – 1.0 EcoBoost mHEV petrol hybrid
114 kW / 155 hp
2019 - now · Petrol hybrid
30 parts matched to this engine · 10 departments
Not your engine? Choose another
Save this car and every part on the site shows whether it fits.
Departments for this car
A few parts matched to this engine
All Departments →
TRWTrack Rod End, JTE2318, Front right
TZS 136,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
RidexWiper Blade — 350mm, 298W0200, Front
TZS 20,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in

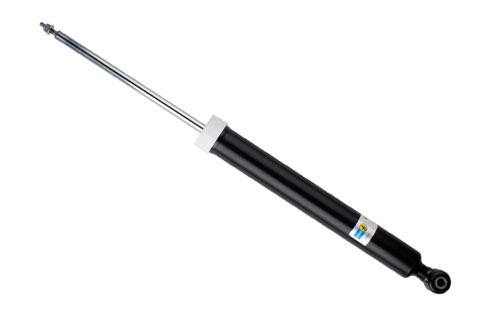

BilsteinShock Absorber, 19-317373, Rear
TZS 328,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Car Details
Details may vary by version.
Engine
- Fuel
- Petrol hybrid
- Made
- From 2019
- Engine code
- BZJA
- Power type
- Mild hybrid (small electric helper)
- Engine size
- 999 cc (1 litre)
- Engine power
- 155 hp (114 kW) at 6,000 rpm
- Total power
- 155 hp (114 kW)
- Torque (pulling power)
- 240 Nm
- Cylinders
- 3, in a row (inline)
- Turbo
- Turbo
- Fuel injection
- Direct injection
Show 6 MoreShow Less
- Valves
- 12 (4 per cylinder)
- Valve system
- DOHC
- Bore x stroke
- 71.9 x 82 mm
- Compression ratio
- 10:1
- Engine position
- Front, sideways (transverse)
- Electric motor power
- 16 hp (12 kW)
Fluids and capacities
- Engine oil amount
- 4.6 litres
- Engine oil grade
- 5W-20
- Coolant
- 5.6 litres
- Fuel tank
- 42 litres
Show 2 MoreShow Less
- Drive battery type
- Lithium-ion
- Drive battery voltage
- 48 volts
Gearbox and drive
- Gearbox
- 6-speed manual or 7-speed automatic (twin-clutch)
- Driven wheels
- Front-wheel drive
Wheels, brakes, suspension and steering
- Tyre size
- 215/55 R17, 215/50 R18 or 225/40 R19
- Wheel (rim) size
- 7J x 17, 7J x 18 or 7.5J x 19
- Front brakes
- Discs or Ventilated discs
- Rear brakes
- Discs or Drums
- Steering
- Rack and pinion, electric power steering
Show 2 MoreShow Less
- Front suspension
- Independent, McPherson type with coil spring and anti-roll bar
- Rear suspension
- Coil spring, Elastic beam
Size and weight
- Body style
- SUV
- Seats
- 5
- Doors
- 5
- Length
- 4,186 to 4,207 mm
- Width
- 1,805 mm
- Height
- 1,534 to 1,550 mm
- Weight (empty)
- 1,205 to 1,293 kg
- Ground clearance
- 163 to 166 mm
- Boot space
- 456 to 468 litres
Show 13 MoreShow Less
- Boot space, rear seats folded
- 1,161 to 1,216 litres
- Wheelbase
- 2,588 mm
- Width with mirrors
- 1,930 mm
- Front track
- 1,567 mm
- Rear track
- 1,526 mm
- Turning circle
- 10.3 to 10.6 metres
- Maximum weight (loaded)
- 1,760 to 1,835 kg
- Load it can carry
- 485 to 560 kg
- Roof load
- 50 kg
- Front overhang
- 850 to 856 mm
- Rear overhang
- 748 to 763 mm
- Approach angle
- 17.5 degrees
- Departure angle
- 26.6 degrees
Speed and fuel use
- Fuel use, mixed driving
- 4.4 to 6.3 l/100 km (about 15.9 to 22.7 km per litre)
- Fuel use in town
- 5.1 to 5.3 l/100 km (about 18.9 to 19.6 km per litre)
- Fuel use on the highway
- 3.9 to 4.1 l/100 km (about 24.4 to 25.6 km per litre)
- Top speed
- 200 to 205 km/h
- 0 to 100 km/h
- 8.7 to 9 seconds
Show 2 MoreShow Less
- CO2 emissions
- 99 to 142 g/km
- Emission standard
- Euro 6
Fuel use is from official tests; town driving usually uses more.
More
- Towing, trailer with brakes
- 900 to 1,100 kg
- Towing, trailer without brakes
- 640 to 665 kg
- Weight on the tow bar
- 75 kg
- Engine systems
- On some versions: start-stop (engine switches off at lights), particulate filter (DPF/GPF), cylinder deactivation
