Bilstein

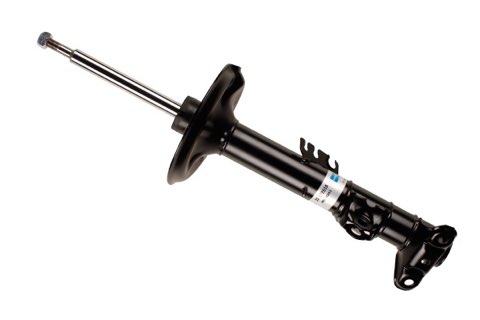

Shock Absorber, 19-128160, Front
TZS 313,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Hyundai GALLOPER II – 2.5 TCi D diesel
JK-01 · 77 kW / 105 hp
1998 - 2003 · Diesel · 2,476 cc
42 parts matched to this engine · 10 departments
Not your engine? Choose another
Save this car and every part on the site shows whether it fits.
Parts for this car
A few parts matched to this engine
All Parts →
Mann-FilterFuel Filter, WK 940/11 x
Ø 91 x 140 mm
TZS 161,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
BoschOil Pressure Switch, 0 986 345 001
TZS 31,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
RidexWiper Blade — 400mm, 298W0046, Front
Length 400 mm
TZS 19,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in

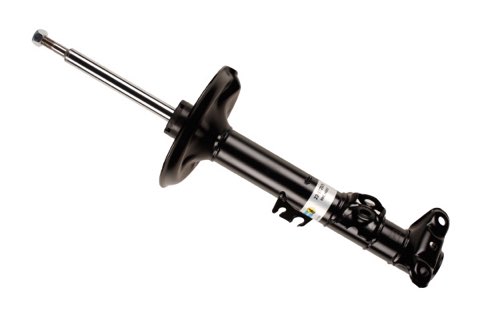

BilsteinShock Absorber, 19-128177, Rear
TZS 313,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Car Details
Details may vary by version.
Engine
- Fuel
- Diesel
- Made
- 1998 - 2003
- Engine code
- D4BH
- Engine size
- 2,477 cc (2.5 litres)
- Engine power
- 105 hp (77 kW) at 3,900 rpm
- Torque (pulling power)
- 253 Nm at 1,800 rpm
- Cylinders
- 4, in a row (inline)
- Turbo
- Turbo
- Fuel injection
- Common-rail diesel injection
Show 5 MoreShow Less
- Valves
- 8 (2 per cylinder)
- Valve system
- OHC
- Bore x stroke
- 91.1 x 95 mm
- Compression ratio
- 21:1
- Engine position
- Front, lengthways (longitudinal)
Fluids and capacities
- Engine oil amount
- 6.5 litres
- Engine oil grade
- 10W-30 or 15W-40
- Fuel tank
- 75 to 92 litres
Gearbox and drive
- Gearbox
- 5-speed manual
- Driven wheels
- 4x4 (all four wheels)
Wheels, brakes, suspension and steering
- Tyre size
- 235/75 R15
- Front brakes
- Discs
- Rear brakes
- Drums
- Steering
- Recirculating ball, hydraulic power steering
Show 2 MoreShow Less
- Front suspension
- Torsion bar
- Rear suspension
- Coil spring
Size and weight
- Body style
- SUV
- Seats
- 5
- Doors
- 3 or 5
- Length
- 4,085 to 4,685 mm
- Width
- 1,770 to 1,785 mm
- Height
- 1,860 to 1,890 mm
- Weight (empty)
- 1,745 to 1,845 kg
Show 6 MoreShow Less
- Boot space, rear seats folded
- 1,386 to 2,156 litres
- Wheelbase
- 2,350 to 2,695 mm
- Front track
- 1,400 mm
- Rear track
- 1,375 mm
- Maximum weight (loaded)
- 2,550 kg
- Load it can carry
- 705 to 805 kg
Speed and fuel use
- Fuel use in town
- 13.9 to 14.5 l/100 km (about 6.9 to 7.2 km per litre)
- Fuel use on the highway
- 9.5 to 9.9 l/100 km (about 10.1 to 10.5 km per litre)
- Top speed
- 140 km/h
- 0 to 100 km/h
- 16.3 to 16.9 seconds
Fuel use is from official tests; town driving usually uses more.
