Hyundai Kona – 1.6 CRDi Hybrid 48V 4WD diesel
OS · 100 kW / 136 hp
2020 - now · Diesel hybrid · 1,598 cc
32 parts matched to this engine · 6 departments
Not your engine? Choose another
Save this car and every part on the site shows whether it fits.
Departments for this car
A few parts matched to this engine
All Departments →
RidexWiper Blade — 650mm, 298W0070, Front
TZS 37,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in

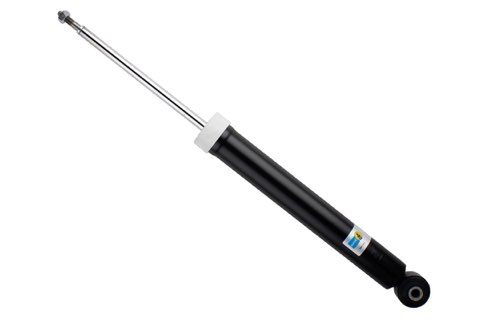

BilsteinShock Absorber, 19-323367, Rear
TZS 641,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
BoschExhaust Gas Temperature Sensor, 0 986 259 234
TZS 441,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Febi BilsteinDeflection / Guide Pulley, 1001185
TZS 66,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
RidexWiper Blade — 650/400mm, 298W0077, Front
TZS 61,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Car Details
Details may vary by version.
Engine
- Fuel
- Diesel hybrid
- Made
- From 2020
- Engine code
- Smartstream / D4FE
- Power type
- Mild hybrid (small electric helper)
- Engine size
- 1,598 cc (1.6 litres)
- Engine power
- 136 hp (100 kW) at 4,000 rpm
- Total power
- 136 hp (100 kW)
- Torque (pulling power)
- 320 Nm at 2,000 to 2,250 rpm
- Cylinders
- 4, in a row (inline)
- Turbo
- Turbo
- Fuel injection
- Common-rail diesel injection
Show 5 MoreShow Less
- Valves
- 16 (4 per cylinder)
- Bore x stroke
- 77 x 85.8 mm
- Engine position
- Front, sideways (transverse)
- Electric motor power
- 14 hp (10 kW)
- Catalytic converter
- Diesel oxidation catalyst
Fluids and capacities
- Engine oil amount
- 4.4 litres
- Coolant
- 6 litres
- Fuel tank
- 50 litres
- AdBlue tank
- 12 litres
- Drive battery size
- 0.46 kWh
Gearbox and drive
- Gearbox
- 7-speed automatic (twin-clutch)
- Driven wheels
- 4x4 (all four wheels)
Wheels, brakes, suspension and steering
- Tyre size
- 205/60 R16, 215/55 R17 or 235/45 R18
- Wheel (rim) size
- 6.5J x 16, 7J x 17 or 7.5J x 18
- Front brakes
- Ventilated discs
- Rear brakes
- Discs
- Steering
- Rack and pinion, electric power steering
Show 2 MoreShow Less
- Front suspension
- Independent, McPherson type with coil spring and anti-roll bar
- Rear suspension
- Independent multi-link suspension
Size and weight
- Body style
- SUV
- Seats
- 5
- Doors
- 5
- Length
- 4,205 mm
- Width
- 1,800 mm
- Height
- 1,565 mm
- Weight (empty)
- 1,445 kg
- Ground clearance
- 170 mm
- Boot space
- 374 litres
Show 10 MoreShow Less
- Boot space, rear seats folded
- 1,156 litres
- Wheelbase
- 2,600 mm
- Front track
- 1,559 to 1,575 mm
- Rear track
- 1,568 to 1,584 mm
- Turning circle
- 10.6 metres
- Maximum weight (loaded)
- 1,965 kg
- Load it can carry
- 520 kg
- Roof load
- 80 kg
- Front overhang
- 870 mm
- Rear overhang
- 735 mm
Speed and fuel use
- Fuel use, mixed driving
- 5.6 l/100 km (about 17.9 km per litre)
- Top speed
- 185 km/h
- 0 to 100 km/h
- 10.5 seconds
Show 2 MoreShow Less
- CO2 emissions
- 147 g/km
- Emission standard
- Euro 6
Fuel use is from official tests; town driving usually uses more.
More
- Towing, trailer with brakes
- 1,250 kg
- Towing, trailer without brakes
- 600 kg
- Engine systems
- Start-stop (engine switches off at lights), Particulate filter (DPF/GPF)
