Bosch
Guide Sleeve Kit, Brake Caliper, 1 987 470 648
TZS 85,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Hyundai Kona – GDi Hybrid petrol
SX2 · 104 kW / 141 hp
2023 - now · Petrol hybrid · 1,580 cc
13 parts matched to this engine · 7 departments
Not your engine? Choose another
Save this car and every part on the site shows whether it fits.
Parts for this car
A few parts matched to this engine
All Parts →

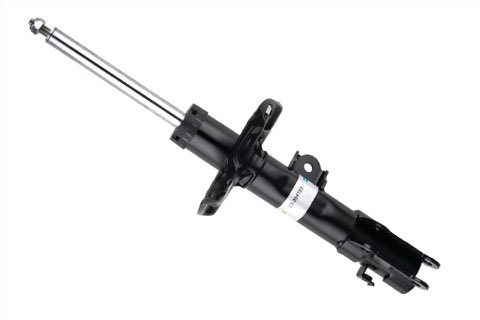

BilsteinShock Absorber, 22-354723, Front right
TZS 660,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Mann-FilterPollen Filter, CU 23 024
210 x 226 x 30 mm
TZS 87,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
BremboBrake Pad, P 30 056, Front
138 x 61 mm
TZS 242,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in

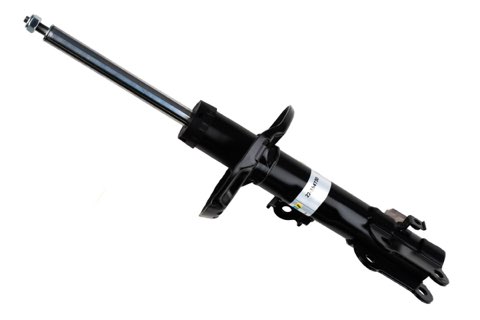

BilsteinShock Absorber, 22-354730, Front left
TZS 731,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Mann-FilterOil Filter, W 811/80
Ø 80 x 75 mm
TZS 43,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
RidexTrack Rod End, 914T0975, Front
Length 120 mm
TZS 84,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Car Details
Details may vary by version.
Engine
- Fuel
- Petrol hybrid
- Made
- From 2023
- Engine code
- Smartstream or G4LL
- Power type
- Full hybrid (self-charging)
- Engine size
- 1,580 cc (1.6 litres)
- Engine power
- 102 to 105 hp (75 to 77 kW) at 5,700 rpm
- Total power
- 138 to 141 hp (101 to 104 kW)
- Torque (pulling power)
- 141 to 144 Nm
- Cylinders
- 4, in a row (inline)
- Turbo
- No turbo (naturally aspirated)
- Fuel injection
- Direct injection
Show 6 MoreShow Less
- Valves
- 16 (4 per cylinder)
- Valve system
- DOHC
- Bore x stroke
- 72 x 97 mm
- Compression ratio
- 13:1
- Engine position
- Front, sideways (transverse)
- Electric motor power
- 44 hp (32 kW)
Fluids and capacities
- Engine oil amount
- 4.1 litres
- Coolant
- 6.7 litres
- Fuel tank
- 38 litres
- Drive battery size
- 1.32 kWh
- Drive battery type
- Lithium-ion
Gearbox and drive
- Gearbox
- 6-speed automatic (twin-clutch)
- Driven wheels
- Front-wheel drive
Wheels, brakes, suspension and steering
- Tyre size
- 215/55 R18 or 205/65 R16
- Wheel (rim) size
- 7J x 18 or 6.5J x 16
- Front brakes
- Ventilated discs
- Rear brakes
- Discs
- Steering
- Rack and pinion, electric power steering
Show 2 MoreShow Less
- Front suspension
- Independent, McPherson type
- Rear suspension
- Independent multi-link suspension
Size and weight
- Body style
- SUV
- Seats
- 5
- Doors
- 5
- Length
- 4,350 mm
- Width
- 1,825 mm
- Height
- 1,585 mm
- Weight (empty)
- 1,410 to 1,525 kg
- Ground clearance
- 160 to 170 mm
- Boot space
- 466 litres
Show 8 MoreShow Less
- Boot space, rear seats folded
- 1,300 litres
- Wheelbase
- 2,660 mm
- Front track
- 1,591 to 1,602 mm
- Rear track
- 1,600 to 1,611 mm
- Turning circle
- 10.6 metres
- Maximum weight (loaded)
- 1,950 kg
- Load it can carry
- 425 to 540 kg
- Roof load
- 100 kg
Speed and fuel use
- Fuel use, mixed driving
- 4.6 to 4.8 l/100 km (about 20.8 to 21.7 km per litre)
- Top speed
- 165 to 166 km/h
- 0 to 100 km/h
- 11 to 11.2 seconds
Show 2 MoreShow Less
- CO2 emissions
- 101 to 117 g/km
- Emission standard
- Euro 6
Fuel use is from official tests; town driving usually uses more.
More
- Towing, trailer with brakes
- 1,110 to 1,300 kg
- Towing, trailer without brakes
- 600 kg
- Weight on the tow bar
- 80 kg
- Engine systems
- Start-stop (engine switches off at lights), Particulate filter (DPF/GPF)
