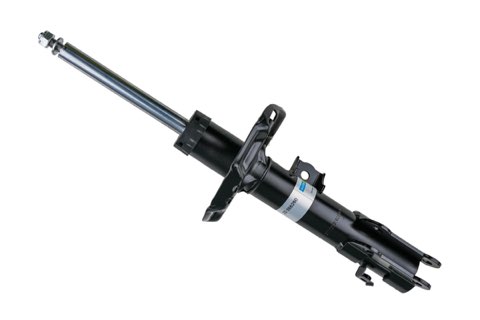

Bilstein
Shock Absorber, 22-356260, Front right
TZS 707,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Kia Niro II – 1.6 GDI Hybrid petrol
SG2 · 104 kW / 141 hp
2022 - now · Petrol hybrid · 1,580 cc
18 parts matched to this engine · 8 departments
Not your engine? Choose another
Save this car and every part on the site shows whether it fits.
Parts for this car
A few parts matched to this engine
All Parts →
Mann-FilterPollen Filter, CU 23 033
210 x 227 x 30 mm
TZS 87,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
FAGTrack Rod End, 840 1699 10
Length 120 mm
TZS 148,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
RidexWiper Blade — 650/400mm, 298W0077, Front
TZS 61,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in

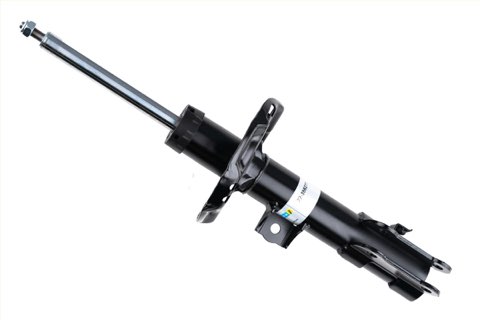

BilsteinShock Absorber, 22-356277, Front left
TZS 707,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Mann-FilterOil Filter, W 811/80
Ø 80 x 75 mm
TZS 43,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
FAGTrack Rod End, 840 1700 10
Length 120 mm
TZS 148,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
RidexWiper Blade — 650mm, 298W0141, Front
Length 650 mm
TZS 44,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Car Details
Details may vary by version.
Engine
- Fuel
- Petrol hybrid
- Made
- From 2022
- Engine code
- Smartstream / G4LE
- Power type
- Full hybrid (self-charging)
- Engine size
- 1,580 cc (1.6 litres)
- Engine power
- 102 to 105 hp (75 to 77 kW) at 5,700 rpm
- Total power
- 138 to 141 hp (101 to 104 kW)
- Torque (pulling power)
- 144 Nm at 4,000 rpm
- Cylinders
- 4, in a row (inline)
- Turbo
- No turbo (naturally aspirated)
- Fuel injection
- Direct injection
Show 7 MoreShow Less
- Valves
- 16 (4 per cylinder)
- Valve system
- DOHC, Dual CVVT
- Bore x stroke
- 72 x 97 mm
- Compression ratio
- 14:1
- Engine position
- Front, sideways (transverse)
- Electric motor power
- 44 hp (32 kW)
- Catalytic converter
- Three-way catalytic converter
Fluids and capacities
- Engine oil amount
- 3.8 to 4.1 litres
- Engine oil grade
- 5W-30
- Coolant
- 5.8 litres
- Fuel tank
- 42 litres
- Drive battery size
- 1.32 kWh
Show 2 MoreShow Less
- Drive battery type
- Lithium-ion
- Drive battery voltage
- 240 volts
Gearbox and drive
- Gearbox
- 6-speed automatic (twin-clutch)
- Driven wheels
- Front-wheel drive
Wheels, brakes, suspension and steering
- Tyre size
- 205/60 R16 or 225/45 R18
- Wheel (rim) size
- 6.5J x 16 or 7.5J x 18
- Front brakes
- Ventilated discs
- Rear brakes
- Discs or Ventilated discs
- Steering
- Rack and pinion, electric power steering
Show 2 MoreShow Less
- Front suspension
- Independent, McPherson type
- Rear suspension
- Independent multi-link suspension
Size and weight
- Body style
- SUV
- Seats
- 5
- Doors
- 5
- Length
- 4,420 to 4,430 mm
- Width
- 1,825 mm
- Height
- 1,545 to 1,560 mm
- Weight (empty)
- 1,399 to 1,525 kg
- Ground clearance
- 160 mm
- Boot space
- 451 to 619 litres
Show 12 MoreShow Less
- Boot space, rear seats folded
- 1,445 to 1,740 litres
- Wheelbase
- 2,720 mm
- Front track
- 1,573 to 1,585 mm
- Rear track
- 1,585 to 1,596 mm
- Turning circle
- 10.6 metres
- Maximum weight (loaded)
- 1,930 to 1,940 kg
- Load it can carry
- 405 to 541 kg
- Roof load
- 75 to 100 kg
- Front overhang
- 895 mm
- Rear overhang
- 805 to 815 mm
- Approach angle
- 14.6 degrees
- Departure angle
- 27.5 degrees
Speed and fuel use
- Fuel use, mixed driving
- 3.4 to 5.3 l/100 km (about 18.9 to 29.4 km per litre)
- Fuel use in town
- 3.4 to 5.2 l/100 km (about 19.2 to 29.4 km per litre)
- Fuel use on the highway
- 3.6 to 5.5 l/100 km (about 18.2 to 27.8 km per litre)
- Top speed
- 165 to 175 km/h
- 0 to 100 km/h
- 10.4 to 11.1 seconds
Show 2 MoreShow Less
- CO2 emissions
- 76 to 111 g/km
- Emission standard
- Euro 6
Fuel use is from official tests; town driving usually uses more.
More
- Towing, trailer with brakes
- 1,110 to 1,300 kg
- Towing, trailer without brakes
- 600 kg
- Weight on the tow bar
- 100 kg
- Air drag (Cd)
- 0.285
- Engine systems
- Start-stop (engine switches off at lights); on some versions: particulate filter (DPF/GPF)
