Mercedes-Benz C-Class T-Modell – C 200 d diesel hybrid
S206 · 206.203 · 120 kW / 163 hp
2021 - now · Diesel hybrid
23 parts matched to this engine · 8 departments
Not your engine? Choose another
Save this car and every part on the site shows whether it fits.
Departments for this car
A few parts matched to this engine
All Departments →

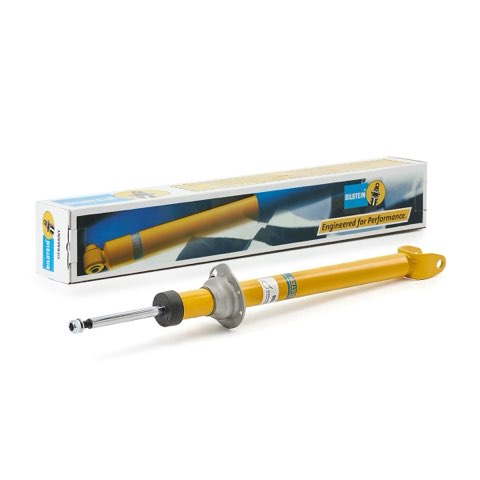

BilsteinShock Absorber, 24-331388, Front
TZS 1,316,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
BoschCamshaft Position Sensor, 0 232 103 172
TZS 103,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Febi BilsteinTrack Rod End, 1003999, Front left
TZS 208,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Febi BilsteinExpansion Tank Cap, 30533
TZS 55,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
RidexRear Wiper Blade — 330mm, 298W0251, Rear
TZS 17,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in

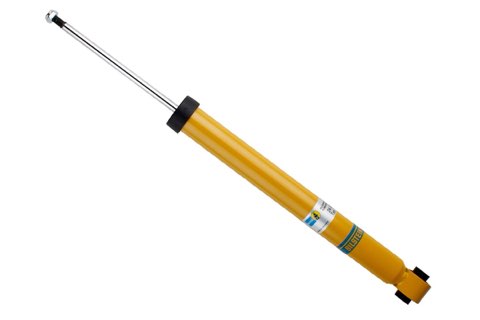

BilsteinShock Absorber, 24-331395, Rear
TZS 910,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Car Details
Details may vary by version.
Engine
- Fuel
- Diesel hybrid
- Made
- From 2021
- Engine code
- OM 654.820 or OM 654 Evo
- Power type
- Mild hybrid (small electric helper)
- Engine size
- 1,992 to 1,993 cc (2 litres)
- Engine power
- 163 hp (120 kW)
- Total power
- 163 hp (120 kW)
- Torque (pulling power)
- 380 Nm
- Cylinders
- 4, in a row (inline)
- Turbo
- Turbo
- Fuel injection
- Common-rail diesel injection
Show 7 MoreShow Less
- Valves
- 16 (4 per cylinder)
- Valve system
- DOHC
- Bore x stroke
- 82 x 94.3 mm
- Compression ratio
- 15.5:1
- Engine position
- Front, lengthways (longitudinal)
- Electric motor power
- 20 to 23 hp (15 to 17 kW)
- Catalytic converter
- Diesel oxidation catalyst
Fluids and capacities
- Engine oil amount
- 6 litres
- Engine oil grade
- 0W-20, 0W-30, 0W-40 or 5W-30 (and 1 more)
- Fuel tank
- 40 to 66 litres
- Drive battery size
- 0.9 kWh
Show 2 MoreShow Less
- Drive battery type
- Lithium-ion
- Drive battery voltage
- 48 volts
Gearbox and drive
- Gearbox
- 9-speed automatic
- Driven wheels
- Rear-wheel drive
Wheels, brakes, suspension and steering
- Tyre size
- 225/50 R17, 225/45 R18, 225/40 R19 or 245/40 R18 (and 2 more)
- Wheel (rim) size
- 7J x 17, 7.5J x 18, 7.5J x 19 or 8.5J x 18 (and 2 more)
- Front brakes
- Ventilated discs
- Rear brakes
- Ventilated discs
- Steering
- Rack and pinion, electric power steering
Show 2 MoreShow Less
- Front suspension
- Coil spring, Independent multi-link suspension, Anti-roll bar
- Rear suspension
- Independent multi-link spring suspension with anti-roll bar
Size and weight
- Body style
- Estate (station wagon)
- Seats
- 5
- Doors
- 5
- Length
- 4,751 to 4,766 mm
- Width
- 1,820 mm
- Height
- 1,454 to 1,455 mm
- Weight (empty)
- 1,705 to 1,785 kg
- Boot space
- 490 litres
Show 14 MoreShow Less
- Boot space, rear seats folded
- 1,510 litres
- Wheelbase
- 2,865 mm
- Width with mirrors
- 2,033 to 2,047 mm
- Front track
- 1,582 to 1,601 mm
- Rear track
- 1,594 to 1,613 mm
- Turning circle
- 10.64 to 11.07 metres
- Maximum weight (loaded)
- 2,400 kg
- Load it can carry
- 615 to 695 kg
- Roof load
- 100 kg
- Front overhang
- 800 mm
- Rear overhang
- 1,086 mm
- Approach angle
- 13.7 degrees
- Departure angle
- 14.6 degrees
- Ramp (breakover) angle
- 8.5 degrees
Speed and fuel use
- Fuel use, mixed driving
- 4.4 to 5.1 l/100 km (about 19.6 to 22.7 km per litre)
- Fuel use in town
- 5.8 to 6.1 l/100 km (about 16.4 to 17.2 km per litre)
- Fuel use on the highway
- 3.6 to 3.9 l/100 km (about 25.6 to 27.8 km per litre)
- Top speed
- 224 to 226 km/h
- 0 to 100 km/h
- 7.8 to 8.3 seconds
Show 2 MoreShow Less
- CO2 emissions
- 116 to 134 g/km
- Emission standard
- Euro 6 or Euro 7
Fuel use is from official tests; town driving usually uses more.
More
- Towing, trailer with brakes
- 1,800 kg
- Towing, trailer without brakes
- 750 kg
- Weight on the tow bar
- 75 kg
- Air drag (Cd)
- 0.26
- Engine systems
- Start-stop (engine switches off at lights), Particulate filter (DPF/GPF)
