Mercedes-Benz E-Class T-Model – E 220 d 4-matic diesel hybrid
S214 · 214.205 · 145 kW / 197 hp
2023 - now · Diesel hybrid
13 parts matched to this engine · 6 departments
Not your engine? Choose another
Save this car and every part on the site shows whether it fits.
Departments for this car
A few parts matched to this engine
All Departments →

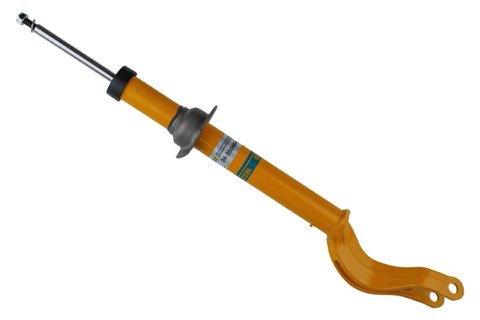

BilsteinShock Absorber, 24-350464, Front left
TZS 1,589,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
BoschCamshaft Position Sensor, 0 232 103 172
TZS 103,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Febi BilsteinExpansion Tank Cap, 30533
TZS 55,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in

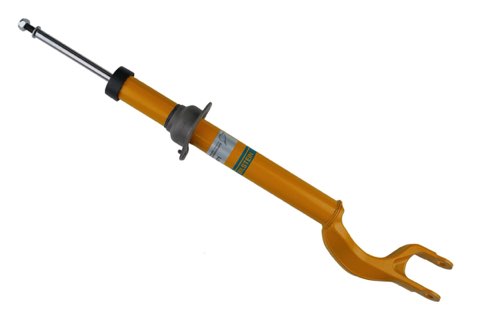

BilsteinShock Absorber, 24-350471, Front right
TZS 1,589,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Car Details
Details may vary by version.
Engine
- Fuel
- Diesel hybrid
- Made
- From 2023
- Engine code
- OM 654 M
- Power type
- Mild hybrid (small electric helper)
- Engine size
- 1,993 cc (2 litres)
- Engine power
- 197 hp (145 kW) at 3,600 rpm
- Total power
- 197 hp (145 kW)
- Torque (pulling power)
- 440 Nm at 1,800 to 2,800 rpm
- Cylinders
- 4, in a row (inline)
- Turbo
- Turbo
- Fuel injection
- Common-rail diesel injection
Show 7 MoreShow Less
- Valves
- 16 (4 per cylinder)
- Valve system
- DOHC
- Bore x stroke
- 82 x 94.3 mm
- Compression ratio
- 15.5:1
- Engine position
- Front, lengthways (longitudinal)
- Electric motor power
- 23 hp (17 kW)
- Catalytic converter
- Diesel oxidation catalyst
Fluids and capacities
- Engine oil amount
- 6 litres
- Engine oil grade
- 0W-20, 0W-30, 0W-40 or 5W-30 (and 1 more)
- Fuel tank
- 66 litres
- AdBlue tank
- 24 litres
Show 2 MoreShow Less
- Drive battery type
- Lithium-ion
- Drive battery voltage
- 48 volts
Gearbox and drive
- Gearbox
- 9-speed automatic
- Driven wheels
- 4x4 (all four wheels)
Wheels, brakes, suspension and steering
- Tyre size
- 225/60 R17
- Wheel (rim) size
- 7.5J x 17
- Front brakes
- Ventilated discs
- Rear brakes
- Ventilated discs
- Steering
- Rack and pinion, electric power steering
Show 2 MoreShow Less
- Front suspension
- Independent multi-link suspension, Anti-roll bar, Air suspension - optional
- Rear suspension
- Independent multi-link suspension, Air suspension, Anti-roll bar
Size and weight
- Body style
- Estate (station wagon)
- Seats
- 5
- Doors
- 5
- Length
- 4,949 mm
- Width
- 1,880 mm
- Height
- 1,469 mm
- Weight (empty)
- 1,985 kg
- Boot space
- 615 litres
Show 11 MoreShow Less
- Boot space, rear seats folded
- 1,830 litres
- Wheelbase
- 2,961 mm
- Width with mirrors
- 2,065 mm
- Front track
- 1,629 mm
- Rear track
- 1,646 mm
- Turning circle
- 12 metres
- Maximum weight (loaded)
- 2,665 kg
- Load it can carry
- 680 kg
- Roof load
- 100 kg
- Front overhang
- 848 mm
- Rear overhang
- 1,140 mm
Speed and fuel use
- Fuel use, mixed driving
- 5.2 to 6 l/100 km (about 16.7 to 19.2 km per litre)
- Top speed
- 227 km/h
- 0 to 100 km/h
- 8.1 seconds
Show 2 MoreShow Less
- CO2 emissions
- 138 to 157 g/km
- Emission standard
- Euro 6
Fuel use is from official tests; town driving usually uses more.
More
- Towing, trailer with brakes
- 2,100 kg
- Towing, trailer without brakes
- 750 kg
- Weight on the tow bar
- 84 kg
- Air drag (Cd)
- 0.26
- Engine systems
- Start-stop (engine switches off at lights), Particulate filter (DPF/GPF)
