Mercedes-Benz GLA – GLA 180 petrol
H247 · 247.784 · 100 kW / 136 hp
2020 - now · Petrol
51 parts matched to this engine · 10 departments
Not your engine? Choose another
Save this car and every part on the site shows whether it fits.
Departments for this car
A few parts matched to this engine
All Departments →
BoschCamshaft Position Sensor, 0 232 103 172
TZS 103,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
BoschDrive Belt Tensioner, 1 987 600 346
TZS 471,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Febi BilsteinExpansion Tank Cap, 30533
TZS 55,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
RidexWiper Blade — 500mm, 298W0118, Front
TZS 34,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
BremboPrime Brake Disc — Front 330mm, 09.D986.11, Front
TZS 609,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in

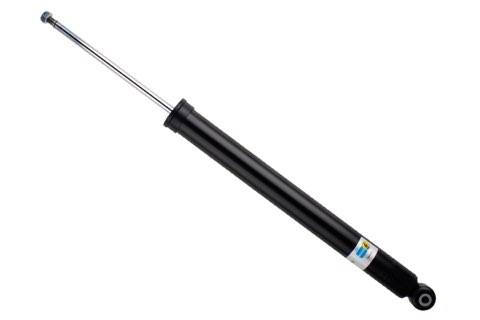

BilsteinShock Absorber, 19-344218, Rear
TZS 375,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Car Details
Details may vary by version.
Engine
- Fuel
- Petrol
- Made
- From 2020
- Engine code
- M 282.914
- Engine size
- 1,332 cc (1.3 litres)
- Engine power
- 136 hp (100 kW)
- Torque (pulling power)
- 200 Nm
- Cylinders
- 4, in a row (inline)
- Turbo
- Turbo
- Fuel injection
- Direct injection
Show 6 MoreShow Less
- Valves
- 16 (4 per cylinder)
- Valve system
- DOHC
- Bore x stroke
- 72.2 x 81.4 mm
- Compression ratio
- 10.6:1
- Engine position
- Front, sideways (transverse)
- Catalytic converter
- Three-way catalytic converter
Fluids and capacities
- Engine oil amount
- 5.1 litres
- Engine oil grade
- 0W-20, 0W-30, 0W-40 or 5W-30 (and 1 more)
- Coolant
- 6.8 litres
- Fuel tank
- 43 litres
Gearbox and drive
- Gearbox
- 7-speed automatic (twin-clutch)
- Driven wheels
- Front-wheel drive
Wheels, brakes, suspension and steering
- Tyre size
- 215/65 R17, 235/55 R18, 235/50 R19 or 235/45 R20
- Wheel (rim) size
- 6.5J x 17, 7.5J x 18, 7.5J x 19 or 8J x 20
- Front brakes
- Ventilated discs
- Rear brakes
- Discs
- Steering
- Rack and pinion, electric power steering
Show 2 MoreShow Less
- Front suspension
- Independent, McPherson type, Anti-roll bar
- Rear suspension
- Independent multi-link suspension, Anti-roll bar
Size and weight
- Body style
- SUV
- Seats
- 5
- Doors
- 5
- Length
- 4,410 mm
- Width
- 1,834 mm
- Height
- 1,611 mm
- Weight (empty)
- 1,405 kg
- Ground clearance
- 143 mm
- Boot space
- 435 litres
Show 14 MoreShow Less
- Boot space, rear seats folded
- 1,430 litres
- Wheelbase
- 2,729 mm
- Width with mirrors
- 2,020 mm
- Front track
- 1,605 mm
- Rear track
- 1,606 mm
- Turning circle
- 11.4 metres
- Maximum weight (loaded)
- 2,010 kg
- Load it can carry
- 605 kg
- Roof load
- 75 kg
- Front overhang
- 905 mm
- Rear overhang
- 776 mm
- Approach angle
- 18.3 degrees
- Departure angle
- 22.1 degrees
- Ramp (breakover) angle
- 14.4 degrees
Speed and fuel use
- Fuel use, mixed driving
- 5.7 to 6 l/100 km (about 16.7 to 17.5 km per litre)
- Fuel use in town
- 7.2 to 7.4 l/100 km (about 13.5 to 13.9 km per litre)
- Fuel use on the highway
- 4.9 to 5.2 l/100 km (about 19.2 to 20.4 km per litre)
- Top speed
- 200 km/h
- 0 to 100 km/h
- 9.6 seconds
Show 2 MoreShow Less
- CO2 emissions
- 130 to 137 g/km
- Emission standard
- Euro 6
Fuel use is from official tests; town driving usually uses more.
More
- Towing, trailer with brakes
- 1,600 kg
- Towing, trailer without brakes
- 740 kg
- Weight on the tow bar
- 80 kg
- Air drag (Cd)
- 0.3
- Engine systems
- Start-stop (engine switches off at lights), Particulate filter (DPF/GPF)
