Mercedes-Benz GLB – GLB 200 Mild-Hybrid petrol
X247 · 247.687 · 120 kW / 163 hp
2019 - now · Petrol hybrid
25 parts matched to this engine · 8 departments
Not your engine? Choose another
Save this car and every part on the site shows whether it fits.
Departments for this car
A few parts matched to this engine
All Departments →
BilsteinShock Absorber, 19-344218, Rear
TZS 375,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
BoschCamshaft Position Sensor, 0 232 103 172
TZS 103,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
BremboPrime Brake Disc — Front 330mm, 09.D986.11, Front
TZS 609,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in

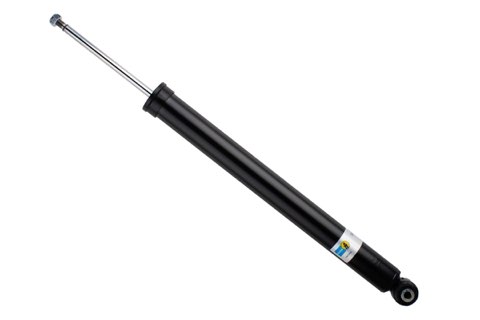

BilsteinShock Absorber, 19-344232, Rear
TZS 471,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
BoschSensor, Fuel Tank Pressure, 0 261 222 00N
TZS 349,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Car Details
Details may vary by version.
Engine
- Fuel
- Petrol hybrid
- Made
- From 2019
- Engine code
- M 282
- Power type
- Mild hybrid (small electric helper)
- Engine size
- 1,332 cc (1.3 litres)
- Engine power
- 163 hp (120 kW) at 5,500 rpm
- Total power
- 163 hp (120 kW)
- Torque (pulling power)
- 270 Nm at 2,000 to 3,500 rpm
- Cylinders
- 4, in a row (inline)
- Turbo
- Turbo
- Fuel injection
- Direct injection
Show 7 MoreShow Less
- Valves
- 16 (4 per cylinder)
- Valve system
- DOHC
- Bore x stroke
- 72.2 x 81.4 mm
- Compression ratio
- 11.8:1
- Engine position
- Front, sideways (transverse)
- Electric motor power
- 14 hp (10 kW)
- Catalytic converter
- Three-way catalytic converter
Fluids and capacities
- Engine oil amount
- 5.1 litres
- Engine oil grade
- 0W-20
- Fuel tank
- 52 litres
Show 2 MoreShow Less
- Drive battery type
- Lithium-ion
- Drive battery voltage
- 48 volts
Gearbox and drive
- Gearbox
- 7-speed automatic (twin-clutch)
- Driven wheels
- Front-wheel drive
Wheels, brakes, suspension and steering
- Tyre size
- 215/65 R17
- Wheel (rim) size
- 6.5J x 17
- Front brakes
- Ventilated discs
- Rear brakes
- Discs
- Steering
- Rack and pinion, electric power steering
Show 2 MoreShow Less
- Front suspension
- Independent, McPherson type with coil spring and anti-roll bar
- Rear suspension
- Independent multi-link spring suspension with anti-roll bar
Size and weight
- Body style
- SUV
- Seats
- 5 or 7
- Doors
- 5
- Length
- 4,634 mm
- Width
- 1,834 mm
- Height
- 1,697 mm
- Weight (empty)
- 1,565 kg
- Ground clearance
- 135 mm
- Boot space
- 565 litres
Show 14 MoreShow Less
- Boot space, rear seats folded
- 1,800 litres
- Wheelbase
- 2,829 mm
- Width with mirrors
- 2,020 mm
- Front track
- 1,604 mm
- Rear track
- 1,604 mm
- Turning circle
- 11.7 metres
- Maximum weight (loaded)
- 2,140 kg
- Load it can carry
- 575 kg
- Roof load
- 75 kg
- Front overhang
- 905 mm
- Rear overhang
- 900 mm
- Approach angle
- 18 degrees
- Departure angle
- 18.3 degrees
- Ramp (breakover) angle
- 13.9 degrees
Speed and fuel use
- Fuel use, mixed driving
- 6.9 to 7.5 l/100 km (about 13.3 to 14.5 km per litre)
- Top speed
- 207 km/h
- 0 to 100 km/h
- 9.3 seconds
Show 2 MoreShow Less
- CO2 emissions
- 156 to 171 g/km
- Emission standard
- Euro 6
Fuel use is from official tests; town driving usually uses more.
More
- Towing, trailer with brakes
- 1,800 kg
- Towing, trailer without brakes
- 750 kg
- Weight on the tow bar
- 100 kg
- Engine systems
- Start-stop (engine switches off at lights), Particulate filter (DPF/GPF)
