Mercedes-Benz GLC SUV – 300d 4-matic diesel hybrid
X254 · 254.607 · 198 kW / 269 hp
2022 - now · Diesel hybrid
18 parts matched to this engine · 7 departments
Not your engine? Choose another
Save this car and every part on the site shows whether it fits.
Departments for this car
A few parts matched to this engine
All Departments →

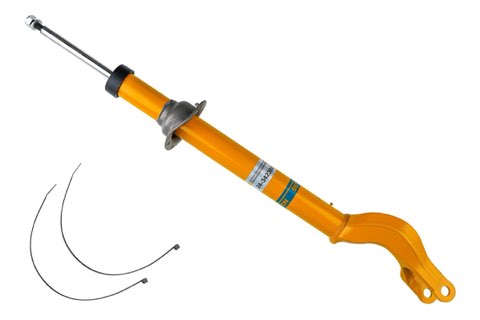

BilsteinShock Absorber, 24-342391, Front right
TZS 1,212,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
BoschCamshaft Position Sensor, 0 232 103 172
TZS 103,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Febi BilsteinExpansion Tank Cap, 30533
TZS 55,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
RidexRear Wiper Blade — 330mm, 298W0251, Rear
TZS 17,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in

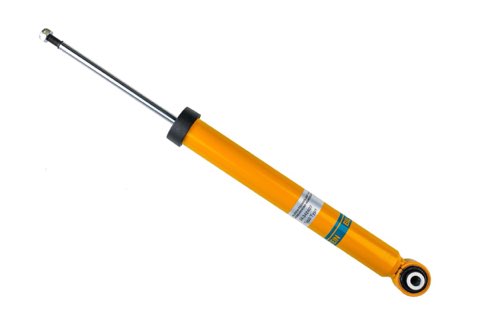

BilsteinShock Absorber, 24-342407, Rear
TZS 990,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Car Details
Details may vary by version.
Engine
- Fuel
- Diesel hybrid
- Made
- From 2022
- Engine code
- OM 654.820
- Power type
- Mild hybrid (small electric helper)
- Engine size
- 1,993 cc (2 litres)
- Engine power
- 269 hp (198 kW) at 4,200 rpm
- Total power
- 269 hp (198 kW)
- Torque (pulling power)
- 550 Nm at 1,800 to 2,200 rpm
- Cylinders
- 4, in a row (inline)
- Turbo
- Twin turbo
- Fuel injection
- Common-rail diesel injection
Show 6 MoreShow Less
- Valves
- 16 (4 per cylinder)
- Valve system
- DOHC
- Bore x stroke
- 82 x 94.3 mm
- Compression ratio
- 15.5:1
- Engine position
- Front, lengthways (longitudinal)
- Electric motor power
- 23 hp (17 kW)
Fluids and capacities
- Engine oil amount
- 6 litres
- Engine oil grade
- 0W-20, 0W-30, 0W-40 or 5W-30 (and 1 more)
- Fuel tank
- 62 litres
- AdBlue tank
- 24 litres
Show 2 MoreShow Less
- Drive battery type
- Lithium-ion
- Drive battery voltage
- 48 volts
Gearbox and drive
- Gearbox
- 9-speed automatic
- Driven wheels
- 4x4 (all four wheels)
Wheels, brakes, suspension and steering
- Tyre size
- 235/60 R18, 235/55 R19, 255/45 R20 or 255/55 R18 (and 2 more)
- Wheel (rim) size
- 8J x 18, 8J x 19, 8.5J x 20 or 9J x 18 (and 2 more)
- Front brakes
- Ventilated discs
- Rear brakes
- Ventilated discs
- Steering
- Rack and pinion, electric power steering
Show 2 MoreShow Less
- Front suspension
- Independent multi-link suspension, Air suspension - optional
- Rear suspension
- Independent multi-link suspension, Air suspension - optional
Size and weight
- Body style
- SUV
- Seats
- 5
- Doors
- 5
- Length
- 4,716 mm
- Width
- 1,890 mm
- Height
- 1,640 mm
- Weight (empty)
- 1,950 kg
- Ground clearance
- 174 to 194 mm
- Boot space
- 620 litres
Show 14 MoreShow Less
- Boot space, rear seats folded
- 1,680 litres
- Wheelbase
- 2,888 mm
- Width with mirrors
- 2,075 mm
- Front track
- 1,627 mm
- Rear track
- 1,640 mm
- Turning circle
- 10.9 metres
- Maximum weight (loaded)
- 2,570 kg
- Load it can carry
- 620 kg
- Roof load
- 75 kg
- Front overhang
- 843 mm
- Rear overhang
- 985 mm
- Approach angle
- 21.2 degrees
- Departure angle
- 21.8 degrees
- Wading depth
- 300 mm
Speed and fuel use
- Fuel use, mixed driving
- 5.6 to 6.2 l/100 km (about 16.1 to 17.9 km per litre)
- Top speed
- 243 km/h
- 0 to 100 km/h
- 6.3 seconds
Show 2 MoreShow Less
- CO2 emissions
- 146 to 163 g/km
- Emission standard
- Euro 6
Fuel use is from official tests; town driving usually uses more.
More
- Towing, trailer with brakes
- 2,500 kg
- Towing, trailer without brakes
- 750 kg
- Weight on the tow bar
- 100 kg
- Engine systems
- Start-stop (engine switches off at lights), Particulate filter (DPF/GPF)
