Mercedes-Benz Ponton – 220 S petrol

W180 · 180.010 · 78 kW / 106 hp

1956 - 1959 · Petrol

Car Details →

12 parts matched to this engine · 4 departments

Not your engine? Choose another

Save this car and every part on the site shows whether it fits.

Departments for this car

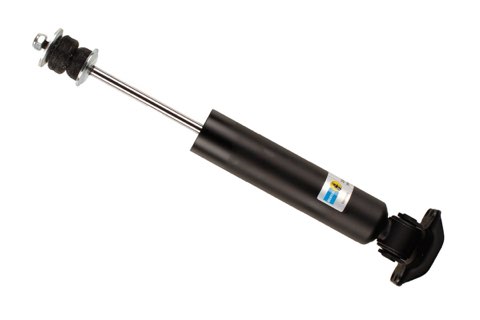

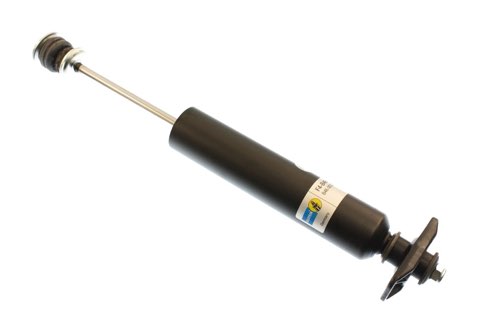

A few parts matched to this engine

All Departments →

Car Details

Details may vary by version.

Engine

Fuel
Petrol
Made
1956 - 1959
Engine code
M 180 III / 180.924
Engine size
2,195 cc (2.2 litres)
Engine power
106 hp (78 kW) at 5,200 rpm
Torque (pulling power)
171 to 172 Nm at 3,500 rpm
Cylinders
6, in a row (inline)
Turbo
No turbo (naturally aspirated)
Fuel injection
Carburettor
Show 6 MoreShow Less
Valves
12 (2 per cylinder)
Valve system
SOHC
Bore x stroke
80 to 80.01 x 72.8 mm
Compression ratio
8.7:1
Engine position
Front, lengthways (longitudinal)
Catalytic converter
No catalytic converter

Fluids and capacities

Engine oil amount
11.9 litres
Coolant
11.4 litres
Fuel tank
64 litres

Engine Oils for This Car →Coolants for This Car →

Gearbox and drive

Gearbox
4-speed manual
Driven wheels
Rear-wheel drive

Wheels, brakes, suspension and steering

Front brakes
Drums
Rear brakes
Drums
Steering
Recirculating ball
Show 2 MoreShow Less
Front suspension
Double wishbone, Anti-roll bar
Rear suspension
Trailing arm

Size and weight

Body style
Convertible, Coupe or Saloon (sedan)
Seats
5
Doors
2 or 4
Length
4,700 to 4,750 mm
Width
1,740 to 1,790 mm
Height
1,530 to 1,560 mm
Weight (empty)
1,325 to 1,400 kg
Show 5 MoreShow Less
Wheelbase
2,700 to 2,820 mm
Front track
1,430 mm
Rear track
1,470 mm
Maximum weight (loaded)
1,790 kg
Load it can carry
390 to 465 kg

Speed and fuel use

Fuel use, mixed driving
10.7 to 10.9 l/100 km (about 9.2 to 9.3 km per litre)
Top speed
160 km/h
0 to 100 km/h
17 seconds

Fuel use is from official tests; town driving usually uses more.
