Renault Arkana I – 1.3 TCe petrol hybrid
LCM_ · LDN0 · 103 kW / 140 hp
2020 - now · Petrol hybrid · 1,332 cc
35 parts matched to this engine · 9 departments
Not your engine? Choose another
Save this car and every part on the site shows whether it fits.
Departments for this car
A few parts matched to this engine
All Departments →

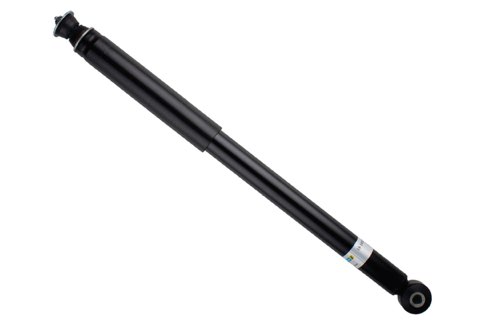

BilsteinShock Absorber, 19-345314, Rear
TZS 375,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
BoschCamshaft Position Sensor, 0 232 103 176
TZS 172,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
BoschDrive Belt Tensioner, 1 987 600 355
TZS 316,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
RidexWiper Blade — 600mm, 298W0065, Front left
TZS 25,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in

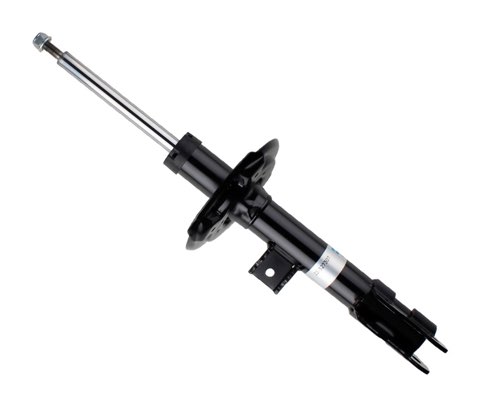

BilsteinShock Absorber, 22-327307, Front right
TZS 438,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Car Details
Details may vary by version.
Engine
- Fuel
- Petrol hybrid
- Made
- From 2020
- Engine code
- H5H 490
- Power type
- Mild hybrid (small electric helper)
- Engine size
- 1,333 cc (1.3 litres)
- Engine power
- 140 hp (103 kW) at 4,500 to 6,000 rpm
- Total power
- 140 hp (103 kW)
- Torque (pulling power)
- 260 Nm at 1,750 to 3,500 rpm
- Cylinders
- 4, in a row (inline)
- Turbo
- Turbo
- Fuel injection
- Direct injection
Show 4 MoreShow Less
- Valves
- 16 (4 per cylinder)
- Bore x stroke
- 72.2 x 81.4 mm
- Engine position
- Front, sideways (transverse)
- Catalytic converter
- Three-way catalytic converter
Fluids and capacities
- Engine oil amount
- 5.5 litres
- Coolant
- 7.5 litres
- Fuel tank
- 50 litres
Show 2 MoreShow Less
- Drive battery type
- Lithium-ion
- Drive battery voltage
- 13 volts
Gearbox and drive
- Gearbox
- 7-speed automatic (twin-clutch)
- Driven wheels
- Front-wheel drive
Wheels, brakes, suspension and steering
- Tyre size
- 215/60 R17, 215/55 R18 or 225/45 R19
- Wheel (rim) size
- 17 inch, 18 inch or 19 inch
- Front brakes
- Ventilated discs
- Rear brakes
- Discs
- Steering
- Rack and pinion, electric power steering
Show 2 MoreShow Less
- Front suspension
- Independent, McPherson type
- Rear suspension
- Semi-independent, coil spring
Size and weight
- Body style
- Coupe
- Seats
- 5
- Doors
- 5
- Length
- 4,568 mm
- Height
- 1,576 mm
- Weight (empty)
- 1,336 kg
- Ground clearance
- 200 mm
- Boot space
- 513 litres
Show 10 MoreShow Less
- Boot space, rear seats folded
- 1,269 litres
- Wheelbase
- 2,720 mm
- Width with mirrors
- 2,034 mm
- Front track
- 1,562 mm
- Rear track
- 1,584 mm
- Turning circle
- 11.2 metres
- Maximum weight (loaded)
- 1,876 kg
- Load it can carry
- 540 kg
- Front overhang
- 878 mm
- Rear overhang
- 970 mm
Speed and fuel use
- Fuel use, mixed driving
- 5.8 l/100 km (about 17.2 km per litre)
- Top speed
- 174 to 205 km/h
- 0 to 100 km/h
- 9.8 seconds
Show 2 MoreShow Less
- CO2 emissions
- 130 to 131 g/km
- Emission standard
- Euro 6
Fuel use is from official tests; town driving usually uses more.
More
- Towing, trailer with brakes
- 900 kg
- Towing, trailer without brakes
- 705 kg
- Engine systems
- Start-stop (engine switches off at lights), Particulate filter (DPF/GPF)
