Bosch
Wheel Brake Cylinder, 0 986 475 857
Piston 17,5 mm
TZS 118,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Suzuki BALENO Estate – 1.6 i 16V 4x4 petrol
EG · SY416 · 72 kW / 98 hp
1996 - 2002 · Petrol · 1,590 cc
64 parts matched to this engine · 10 departments
Not your engine? Choose another
Save this car and every part on the site shows whether it fits.
Parts for this car
A few parts matched to this engine
All Parts →
Mann-FilterOil Filter, W 67/2
Ø 66 x 65 mm
TZS 54,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
TRWTrack Rod End, JTE317, Front
Length 72 mm
TZS 84,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
BoschSerpentine Belt, 1 987 947 805
Length 841 mm
TZS 26,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
MahleEngine Radiator, for Vehicles, CR 743 000S
TZS 377,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in

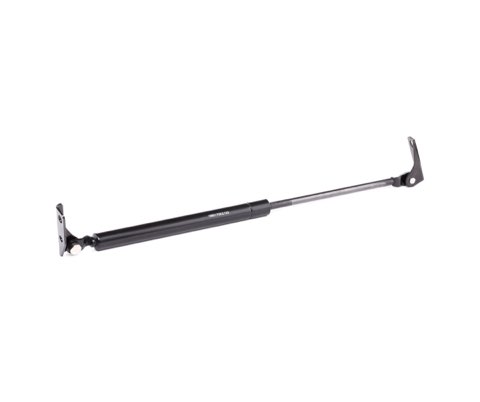

RidexTailgate Strut, 219G0573, Right
Length 496 mm
TZS 122,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Car Details
Engine
- Fuel
- Petrol
- Made
- 1996 - 2002
- Engine code
- G16B
- Engine size
- 1,590 cc (1.6 litres)
- Engine power
- 96 hp (71 kW) at 6,000 rpm
- Torque (pulling power)
- 134 Nm at 3,000 rpm
- Cylinders
- 4, in a row (inline)
- Turbo
- No turbo (naturally aspirated)
- Fuel injection
- Multi-point injection
Show 4 MoreShow Less
- Valves
- 16 (4 per cylinder)
- Bore x stroke
- 75 x 90 mm
- Compression ratio
- 9.5:1
- Engine position
- Front, sideways (transverse)
Fluids and capacities
- Engine oil amount
- 3.3 litres
- Engine oil grade
- 5W-30 or 10W-30
- Coolant
- 4.2 litres
- Fuel tank
- 51 litres
Gearbox and drive
- Gearbox
- 5-speed manual
- Driven wheels
- 4x4 (all four wheels)
Wheels, brakes, suspension and steering
- Tyre size
- 185/60 R14
- Wheel (rim) size
- 14 inch
- Front brakes
- Ventilated discs
- Rear brakes
- Drums
- Steering
- Rack and pinion, hydraulic power steering
Show 2 MoreShow Less
- Front suspension
- Wishbone
- Rear suspension
- Wishbone
Size and weight
- Body style
- Estate (station wagon)
- Seats
- 5
- Doors
- 5
- Length
- 4,375 mm
- Width
- 1,690 mm
- Height
- 1,460 mm
- Weight (empty)
- 1,115 kg
- Boot space
- 375 litres
Show 6 MoreShow Less
- Boot space, rear seats folded
- 1,377 litres
- Wheelbase
- 2,480 mm
- Front track
- 1,440 mm
- Rear track
- 1,435 mm
- Maximum weight (loaded)
- 1,590 kg
- Load it can carry
- 475 kg
Speed and fuel use
- Fuel use in town
- 9.1 l/100 km (about 11 km per litre)
- Fuel use on the highway
- 6.4 l/100 km (about 15.6 km per litre)
- Top speed
- 165 km/h
Fuel use is from official tests; town driving usually uses more.
