Bosch
Brake Shoe Fitting Kit, 1 987 475 252
TZS 78,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Suzuki Jimny IV Off-Road – 1.5 AllGrip petrol
A6G · JB74W · 75 kW / 102 hp
2018 - now · Petrol · 1,462 cc
23 parts matched to this engine · 10 departments
Not your engine? Choose another
Save this car and every part on the site shows whether it fits.
Departments for this car
A few parts matched to this engine
All Departments →
BoschCamshaft Position Sensor, 0 232 103 148
TZS 179,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in

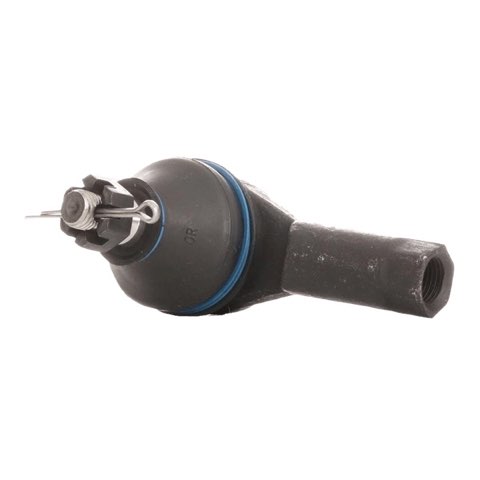

Febi BilsteinTrack Rod End, 199833, Front left
TZS 132,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
RidexRear Wiper Blade — 280mm, 298W0038, Rear
TZS 19,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
BremboBrake Shoe Set — 220x36mm, S 28 507
TZS 73,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in

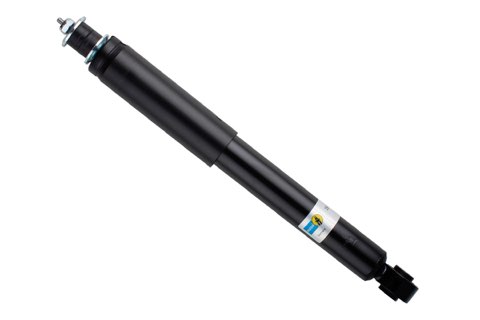

BilsteinShock Absorber, 19-325217, Front
TZS 387,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Car Details
Details may vary by version.
Engine
- Fuel
- Petrol
- Made
- From 2018
- Engine code
- K15B
- Engine size
- 1,462 cc (1.5 litres)
- Engine power
- 102 to 105 hp (75 to 77 kW) at 6,000 rpm
- Torque (pulling power)
- 130 to 134 Nm at 4,000 rpm
- Cylinders
- 4, in a row (inline)
- Turbo
- No turbo (naturally aspirated)
- Fuel injection
- Multi-point injection
Show 6 MoreShow Less
- Valves
- 16 (4 per cylinder)
- Valve system
- DOHC, VVT
- Bore x stroke
- 74 x 85 mm
- Compression ratio
- 10:1
- Engine position
- Front, lengthways (longitudinal)
- Catalytic converter
- Three-way catalytic converter
Fluids and capacities
- Engine oil amount
- 3.6 litres
- Engine oil grade
- 0W-16, 0W-20 or 5W-30
- Coolant
- 4.9 to 5 litres
- Fuel tank
- 40 litres
Gearbox and drive
- Gearbox
- 5-speed manual or 4-speed automatic
- Driven wheels
- 4x4 (all four wheels)
Wheels, brakes, suspension and steering
- Tyre size
- 195/80 R15
- Wheel (rim) size
- 5.5J x 15
- Front brakes
- Ventilated discs or Discs
- Rear brakes
- Drums
- Steering
- Recirculating ball, electric power steering
Show 2 MoreShow Less
- Front suspension
- Coil spring, Rigid axle suspension, Anti-roll bar, Trailing arm
- Rear suspension
- Rigid axle suspension, Trailing arm, Coil spring
Size and weight
- Body style
- Off-road 4x4
- Seats
- 2 or 4
- Doors
- 3 or 5
- Length
- 3,645 to 3,985 mm
- Width
- 1,645 mm
- Height
- 1,720 to 1,725 mm
- Weight (empty)
- 1,090 to 1,215 kg
- Ground clearance
- 210 mm
Show 9 MoreShow Less
- Wheelbase
- 2,250 to 2,590 mm
- Front track
- 1,395 mm
- Rear track
- 1,405 mm
- Turning circle
- 9.8 to 11.4 metres
- Maximum weight (loaded)
- 1,435 to 1,545 kg
- Load it can carry
- 300 to 365 kg
- Approach angle
- 36 to 37 degrees
- Departure angle
- 46 to 49 degrees
- Ramp (breakover) angle
- 24 to 28 degrees
Speed and fuel use
- Fuel use, mixed driving
- 5.9 to 7.7 l/100 km (about 13 to 16.9 km per litre)
- Fuel use in town
- 7.2 to 8.6 l/100 km (about 11.6 to 13.9 km per litre)
- Fuel use on the highway
- 5.4 to 7 l/100 km (about 14.3 to 18.5 km per litre)
- Top speed
- 145 km/h
Show 2 MoreShow Less
- CO2 emissions
- 138 to 179 g/km
- Emission standard
- Euro 6
Fuel use is from official tests; town driving usually uses more.
More
- Towing, trailer with brakes
- 1,300 kg
- Towing, trailer without brakes
- 350 kg
- Engine systems
- On some versions: start-stop (engine switches off at lights)
