Brembo
Prime Brake Pad Set — Front 135mm, P 83 102, Front
135 x 77 mm
TZS 144,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Toyota Tundra I Pickup – 4.7 4WD petrol
XK30, XK40 · UCK40_, UCK41_ · 206 kW / 280 hp
1999 - 2006 · Petrol · 4,664 cc
16 parts matched to this engine · 7 departments
Not your engine? Choose another
Save this car and every part on the site shows whether it fits.
Parts for this car
A few parts matched to this engine
All Parts →
TRWAnti-Roll Bar Link, JTS181, Front
Length 178 mm
TZS 61,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Mann-FilterAir Filter, C 31 007
310 x 230 x 52 mm
TZS 178,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
TRWBall Joint, JBJ534, Front left
Length 167,7 mm
TZS 245,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Febi BilsteinDeflection / Guide Pulley, 181693
Ø 120 mm
TZS 205,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Mann-FilterPollen Filter, CU 1919
193 x 213 x 30 mm
TZS 65,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
TRWBall Joint, JBJ559, Front right
Length 167,7 mm
TZS 236,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in

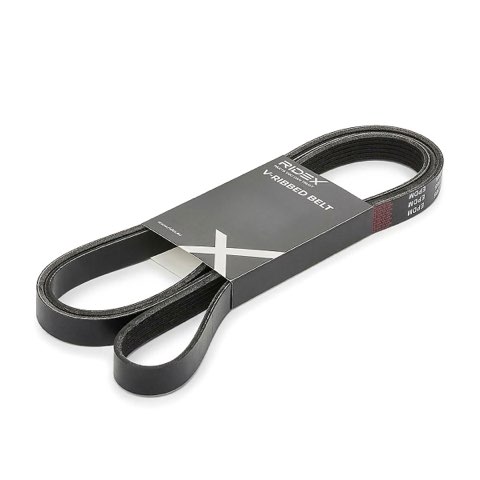

RidexSerpentine Belt, 305P0578
2305 x 21,36 mm
TZS 70,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Car Details
Details may vary by version.
Engine
- Fuel
- Petrol
- Made
- 1999 - 2006
- Engine code
- 2UZ-FE
- Engine size
- 4,664 cc (4.7 litres)
- Engine power
- 282 hp (207 kW) at 5,400 rpm
- Torque (pulling power)
- 440 to 441 Nm at 3,400 rpm
- Cylinders
- 8, in a V
- Turbo
- No turbo (naturally aspirated)
- Fuel injection
- Multi-point injection
Show 5 MoreShow Less
- Valves
- 32 (4 per cylinder)
- Valve system
- DOHC
- Bore x stroke
- 94 x 84 mm
- Compression ratio
- 9.6:1
- Engine position
- Front, lengthways (longitudinal)
Fluids and capacities
- Engine oil amount
- 6.2 litres
- Engine oil grade
- 5W-30
- Coolant
- 11.7 litres
- Fuel tank
- 100 litres
Gearbox and drive
- Gearbox
- 5-speed automatic or 6-speed manual
- Driven wheels
- 4x4 (all four wheels)
Wheels, brakes, suspension and steering
- Tyre size
- 245/70 R16, 265/65 R17 or 265/70 R16
- Wheel (rim) size
- 7J x 16 or 7.5J x 17
- Front brakes
- Ventilated discs
- Rear brakes
- Drums
- Steering
- Rack and pinion
Show 2 MoreShow Less
- Front suspension
- Double wishbone
- Rear suspension
- Leaf spring
Size and weight
- Body style
- Pick-up
- Seats
- 4 or 5
- Doors
- 2 or 4
- Length
- 5,545 to 5,845 mm
- Width
- 1,910 to 2,014 mm
- Height
- 1,796 to 1,889 mm
- Weight (empty)
- 2,063 to 2,252 kg
- Ground clearance
- 269 to 302 mm
Show 9 MoreShow Less
- Boot space, rear seats folded
- 2,625 litres
- Wheelbase
- 3,259 to 3,271 mm
- Front track
- 1,673 to 1,681 mm
- Rear track
- 1,648 to 1,709 mm
- Turning circle
- 13.5 to 14.3 metres
- Maximum weight (loaded)
- 2,857 to 2,994 kg
- Load it can carry
- 687 to 794 kg
- Approach angle
- 26 to 28 degrees
- Departure angle
- 23 degrees
Speed and fuel use
- Fuel use in town
- 13.8 to 15.6 l/100 km (about 6.4 to 7.2 km per litre)
- Fuel use on the highway
- 10.6 to 13 l/100 km (about 7.7 to 9.4 km per litre)
Fuel use is from official tests; town driving usually uses more.
More
- Towing, trailer with brakes
- 2,948 to 3,220 kg
