Volkswagen Amarok II Pickup – 2.0 TDI 4motion diesel
T1, NF · 125 kW / 170 hp
2022 - now · Diesel
14 parts matched to this engine · 6 departments
Not your engine? Choose another
Save this car and every part on the site shows whether it fits.
Departments for this car
A few parts matched to this engine
All Departments →

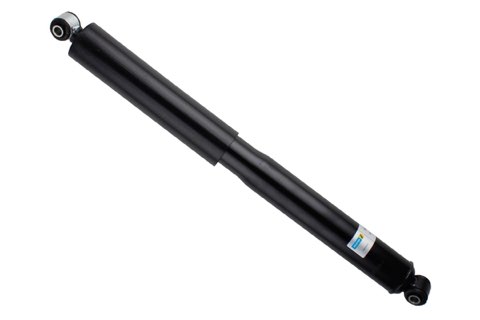

BilsteinShock Absorber, 19-346328, Rear
TZS 398,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
BremboPrime Brake Pad Set, P 24 153, Front
TZS 457,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in

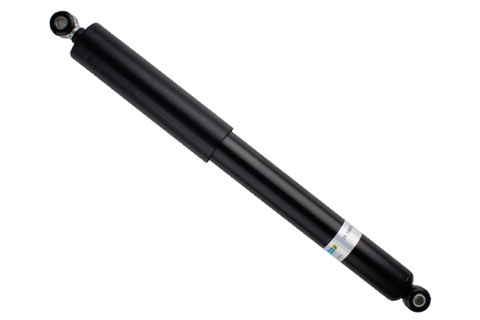

BilsteinShock Absorber, 19-348032, Rear
TZS 398,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Car Details
Engine
- Fuel
- Diesel
- Made
- From 2022
- Engine code
- DXKB(P02X)
- Engine size
- 1,996 cc (2 litres)
- Engine power
- 170 hp (125 kW) at 3,500 rpm
- Torque (pulling power)
- 405 Nm at 1,750 to 2,500 rpm
- Cylinders
- 4, in a row (inline)
- Turbo
- Turbo
- Fuel injection
- Common-rail diesel injection
Show 4 MoreShow Less
- Valves
- 16 (4 per cylinder)
- Bore
- 84 mm
- Compression ratio
- 15.8:1
- Engine position
- Front, lengthways (longitudinal)
Fluids and capacities
- Fuel tank
- 80 litres
Gearbox and drive
- Gearbox
- 6-speed manual
- Driven wheels
- 4x4 (all four wheels)
Wheels, brakes, suspension and steering
- Tyre size
- 255/70 R16 or 255/70 R17
- Wheel (rim) size
- 7J x 16 or 7.5J x 17
- Front brakes
- Ventilated discs
- Rear brakes
- Discs
- Steering
- Rack and pinion, electric power steering
Size and weight
- Body style
- Pick-up
- Seats
- 5
- Doors
- 4
- Length
- 5,390 mm
- Width
- 1,910 mm
- Height
- 1,871 mm
- Weight (empty)
- 2,187 kg
Show 10 MoreShow Less
- Wheelbase
- 3,270 mm
- Front track
- 1,620 mm
- Rear track
- 1,620 mm
- Turning circle
- 12.9 metres
- Maximum weight (loaded)
- 3,190 kg
- Load it can carry
- 1,003 kg
- Roof load
- 85 kg
- Approach angle
- 29 degrees
- Departure angle
- 22 degrees
- Ramp (breakover) angle
- 20 degrees
Speed and fuel use
- Fuel use, mixed driving
- 8.6 l/100 km (about 11.6 km per litre)
- Top speed
- 180 km/h
- 0 to 100 km/h
- 11.6 seconds
Show 2 MoreShow Less
- CO2 emissions
- 226 g/km
- Emission standard
- Euro 6
Fuel use is from official tests; town driving usually uses more.
More
- Towing, trailer with brakes
- 3,450 kg
- Towing, trailer without brakes
- 750 kg
- Weight on the tow bar
- 210 kg
- Engine systems
- Start-stop (engine switches off at lights), Particulate filter (DPF/GPF)
