Bosch
Brake Caliper, 0 986 134 004
Piston 41 mm
TZS 389,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Volkswagen Transporter T6 Van – 2.0 TDI 4motion diesel
SGA, SGH · 150 kW / 204 hp
2015 - 2024 · Diesel
200 parts matched to this engine · 11 departments
Not your engine? Choose another
Save this car and every part on the site shows whether it fits.
Parts for this car
A few parts matched to this engine
All Parts →
TRWSteering Rack Gaiter, JBE311, Front
Length 205 mm
TZS 28,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Mann-FilterAir Filter, C 32 191
312 x 190 x 58 mm
TZS 90,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
BoschConcentric Slave Cylinder, 0 986 486 595
Piston 29 mm
TZS 311,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
BoschDeflection / Guide Pulley, 1 987 945 813
Width 28 mm
TZS 96,500Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in

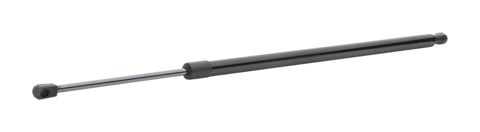

RidexTailgate Strut, 219G1022
Length 711 mm
TZS 66,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
BoschBrake Caliper, 0 986 135 004
Piston 41 mm
TZS 394,000Order-in · 5 to 20 daysOrder-in 5 to 20 daysOrder-in
Car Details
Details may vary by version.
Engine
- Fuel
- Diesel
- Made
- 2015 - 2024
- Engine code
- EA288 / CXEB or EA288MAR / DMZA
- Engine size
- 1,968 cc (2 litres)
- Engine power
- 204 hp (150 kW) at 4,000 rpm
- Torque (pulling power)
- 450 Nm
- Cylinders
- 4, in a row (inline)
- Turbo
- Twin turbo
- Fuel injection
- Common-rail diesel injection
Show 5 MoreShow Less
- Valves
- 16 (4 per cylinder)
- Valve system
- DOHC
- Bore x stroke
- 81 x 95.5 mm
- Compression ratio
- 15.5:1
- Engine position
- Front, sideways (transverse)
Fluids and capacities
- Engine oil amount
- 7.4 litres
- Engine oil grade
- 0W-30
- Fuel tank
- 70 litres
- AdBlue tank
- 13 to 22 litres
Gearbox and drive
- Gearbox
- 7-speed automatic (twin-clutch) or 6-speed manual
- Driven wheels
- 4x4 (all four wheels)
Wheels, brakes, suspension and steering
- Tyre size
- 215/60 R17, 235/55 R17, 255/45 R18 or 215/65 R17
- Wheel (rim) size
- 7J x 17 or 8J x 18
- Front brakes
- Ventilated discs
- Rear brakes
- Ventilated discs
- Steering
- Rack and pinion, hydraulic or electric power steering
Show 2 MoreShow Less
- Front suspension
- Independent, McPherson type with coil spring and anti-roll bar
- Rear suspension
- Independent coil spring, Wishbone, Anti-roll bar
Size and weight
- Body style
- Van
- Seats
- 2, 3, 5 or 6
- Doors
- 4 or 5
- Length
- 4,904 to 5,304 mm
- Width
- 1,904 mm
- Height
- 1,990 to 2,477 mm
- Weight (empty)
- 1,904 to 2,397 kg
- Ground clearance
- 201 to 202 mm
Show 12 MoreShow Less
- Wheelbase
- 3,000 to 3,400 mm
- Width with mirrors
- 2,297 mm
- Turning circle
- 11.9 to 13.2 metres
- Maximum weight (loaded)
- 2,800 to 3,200 kg
- Load it can carry
- 725 to 989 kg
- Roof load
- 100 kg
- Front overhang
- 906 to 908 mm
- Rear overhang
- 993 to 998 mm
- Approach angle
- 21.2 degrees
- Departure angle
- 16.2 degrees
- Ramp (breakover) angle
- 12.2 to 13.7 degrees
- Wading depth
- 300 mm
Speed and fuel use
- Fuel use, mixed driving
- 6.5 to 7.7 l/100 km (about 13 to 15.4 km per litre)
- Fuel use in town
- 7.5 to 8.7 l/100 km (about 11.5 to 13.3 km per litre)
- Fuel use on the highway
- 5.7 to 7.2 l/100 km (about 13.9 to 17.5 km per litre)
- Top speed
- 185 to 199 km/h
- 0 to 100 km/h
- 8.8 to 9.5 seconds
Show 2 MoreShow Less
- CO2 emissions
- 169 to 202 g/km
- Emission standard
- Euro 6
Fuel use is from official tests; town driving usually uses more.
More
- Towing, trailer with brakes
- 2,500 kg
- Towing, trailer without brakes
- 750 kg
- Weight on the tow bar
- 100 kg
- Engine systems
- Start-stop (engine switches off at lights), Particulate filter (DPF/GPF)
